Microscopy Cameras

INFINITY 3-3

Lumenera Microscopy Camera

The INFINITY3-3 provides unmatched light sensitivity needed for low light applications. The INFINITY3-3 delivers outstanding image quality and value for challenging low light applications such as fluorescence and NIR imaging.

The INFINITY3-3 uses the latest USB 3.0 technology at 5 Gbits/sec to deliver the fastest image transfer - even at its highest resolution.

Contact our support specialists to configure to your application.

Megapixel

2.8

Resolution

1936x1456

Sensor

2/3" CCD

Frame Rate

53

Bit Depth

8 or 14

Read Noise

6.2e-

Binning / Subsampling

Y/Y

Interface

USB 3.1 Gen 1

For Complete Specs


Download Brochure

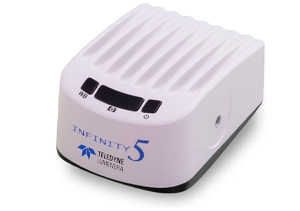

INFINITY 5-3

Lumenera Microscopy Camera

Lumenera's INFINITY5-3 is a high quality 3 megapixel microscopy camera that provides high speeds at high resolution. The INFINITY5-3 is based on the Sony® Pregius™ global shutter CMOS sensor that rivals sCMOS technology. With fast focusing at high frame rates of up to 120 frames per second, the INFINITY5-3 performs in a wide range of applications.

The INFINITY5-3's 1/1.8 inch sensor format accommodates a 2064 x 1544 resolution with 3.45 micron pixels. The HDMI output allows the INFINITY5-3 to connect to both a computer and HDMI TV or monitor for applications where knowledge sharing is critical.

Contact our support specialists to configure to your application.

Megapixel

5.1

Resolution

2464x2056

Sensor

2/3" GS CMOS

Frame Rate

~75

Bit Depth

8 or 12

Read Noise

~2.30e-

Binning / Subsampling

Mono (Y/Y), Color (N/Y)

Interface

USB 3.1 Gen 1 and HDMI

For Complete Specs


Download Brochure

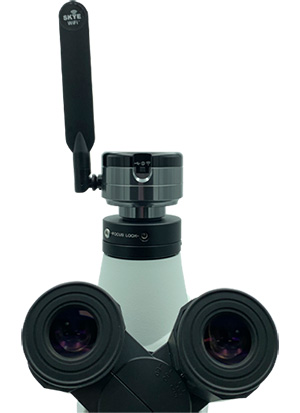

SKYE WiFi

Accu-Scope Microscopy Camera

The new SKYE Microscopy Camera Series delivers fantastic color images and video without the need for cumbersome cables or bulky computers by the microscope.

SKYE microscopy cameras set a new standard for convenience and collaboration in color microscopy imaging. SKYE WiFi images and video can be viewed on PC computers and laptops, as well as Android & iOS mobile devices!

Megapixel

5

Resolution

2592x1944

Sensor

APTINA MT9P001 CMOS (colorful)

Frame Rate

40

For Complete Specs


Download Brochure

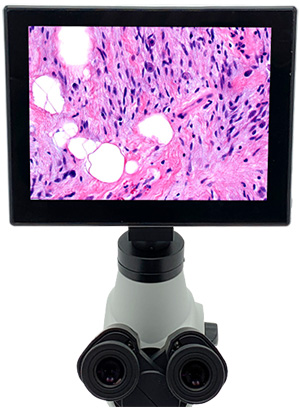

EXCELIS

Accu-Scope HD Microscopy Camera

The ExcelisHD color microscopy cameras set a new standard for excellence in high definition imaging for scientific and industrial applications.

The Excelis600 HD cameras are full featured HD cam-eras offering 60fps in video preview with unrivaled color fidelity and on-board image capturing capability.

Excelis' unique system architecture enables it to offer simultaneous live image output to an HD monitor and to a computer via USB connection. Images can be saved directly to a PC or Mac, or onto the SD card. Each camera is supplied with the PC/Mac-compatible on-board image capture software, as well as our full-featured CaptaVision+PC image analysis software.

Megapixel

6.0

Resolution

1920x1080 Live; 3264x1836 Static

Sensor

SONY IMX236

Frame Rate

HDMI (60fps); USB 2.0 (30fps)

For Complete Specs


Download Brochure

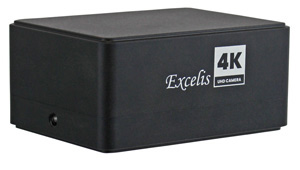

EXCELIS 4K

Accu-Scope UHD Microscopy Camera

The new Excelis 4K, 8MP CMOS color microscopy camera delivers exceptional color images with exceptional resolution.

The revolutionary, feature-rich CaptaVision+ software provides advanced camera controls for image acquisition, image processing, measurements, report generation, plus more!

Megapixel

8

Resolution

3840x2160

Sensor

CMOS • Sony IMX183C, Color

Frame Rate

HDMI: 30fps@3840x2160;
USB 3.0: 25fps@3840x2160;
Ethernet: 30fps@3840x2160

Interface

USB 2.0, USB 3.0, HDMI, Ethernet

For Complete Specs


Download Brochure

ACCU-SLIDE MS

Accu-Scope Manual Slide Scanning System

ACCU-SlideMS by ACCU-SCOPE features a high-speed USB 3.0 camera with state-of-the art Sony sensor technology combined with intuitive imaging software. The solution to all your digital slide-scanning & storage needs!

Megapixel

2.3

Resolution

1920x1200

Sensor

CMOS • Sony IMX249

Frame Rate

41

Bit Depth

8 or 12

Interface

USB 3.0, compatible with USB 2.0

For Complete Specs


Download Brochure
